Carbon Mic Adapter


Carbon Mic Adapter

0.20 LBS
Calculated at checkout

Product Description

What if you need to use an existing carbon microphone (say a vintage piece from a prototype dispatchers' office) and you want to use our Dispatcher/Operator board or other modern amplifier?  You'd need to provide a power supply and a way to provide a "dry" (no DC) output.  A volume control would be nice, too!

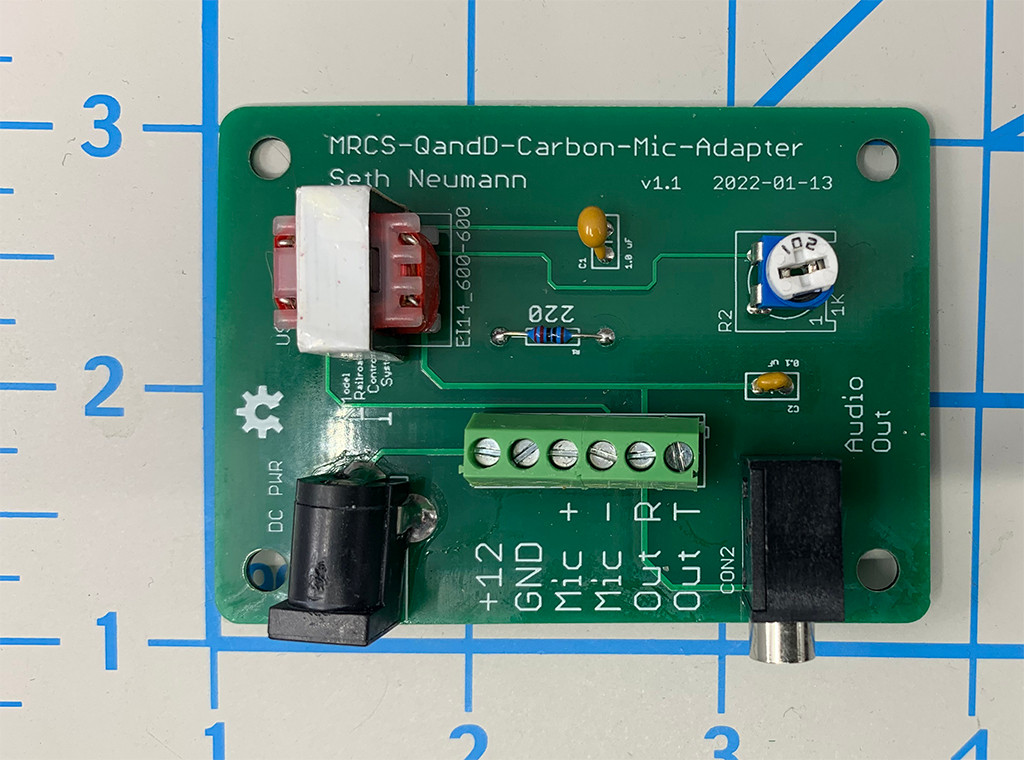

Our Carbon Microphone adapter takes a filtered 12 or 24 supply and powers a carbon mic such as an F1 or T1 transmitter (lots of them are out there) and provides a balanced AC output at 600 ohms, with a volume adjustment (no amplification, just adjusts your line level).

Power connection is a 2.1 x 5 mm barrel jack or screw terminals.

Output is on a 3.5 mm TRS jack or screw terminals

The mic connections are via 3.5mm screw terminals.

Assembly and Installation Instruction (coming soon)

EAGLE Schematic file

EAGLE Board File

Gerber Files

Schematic and Board Layout PDFs

Instructions coming soon (contact us if you need it right away!)
