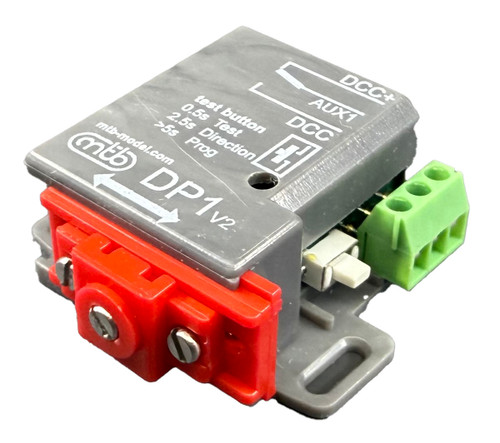

DP1 Basic DCC Controlled Switch Motor. The DP1 is our smallest and least expensive DCC controlled motor.

• Low Cost, compact, basic integrated DCC decoder

• Dimensions and mechanical function identical with MP1
• 4 stroke levels 3, 6, 9 mm
• Dedicated frog power switch output
• Quick setup with integrated push button

The DP1 point machines have a  DCC interface, and are controlled by DCC Accessory command over the DCC track power.

DCC Accessory address and "normal" direction are set with an auxiliary button is used for configuration and testing.

The DPx are designed for easy installation and control of turnouts via DCC, without the need to purchase, mount and configure separate DCC decoder accessories.

 DP Motor Quick Start Guide
